Small in Size, Big in Versatility

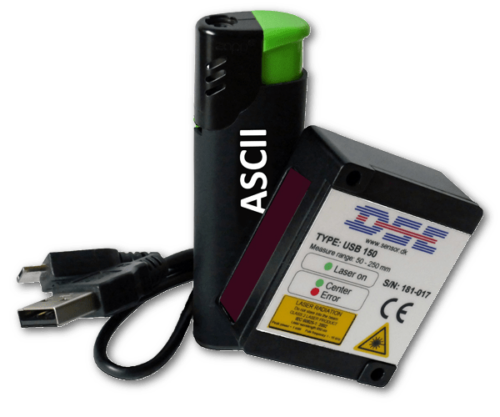

Compact-Line sensor

Small in Size, Big in Versatility

Feb 22, News DSE

Our new innovative Compact-Line sensors measures in ranges from 50 mm up to 400 mm.

The Compact-Line sensors uses a standard USB interface and does not need a separate power supply, but is powered by the USB connection. The sensor can also be ordered with a serial RS-232 (and 4-20mA or 1-9V analog output) or RS-422 connection.

The USB interface is supported by both Windows and Linux environments. Cables are fitted with a micro-B connector at the sensor end and a USB-A connector at the other end (can also be delivered with 8-pol connector or 2 meter fixed cable).

The measuring frequency is 1 kHz and the sensor operates either in BINARY MODE or ASCII MODE.

The format/seize of this new sensor is 48 x 40 x 19,5 mm, and a weight of 55 g without cable attached.

 ODS Compact-Line Datasheet
