ODS Triangulation Principle

The Triangulation Technique is an Ancient yet very Accurate Way of Measuring Distance.

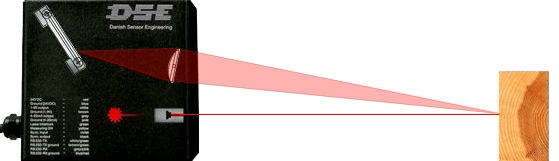

In a high quality laser sensor, a CCD-camera is used to record the emitted laser light. The way to illustrate this measuring principle is to follow a ray tracing from the laser optics to the target, and back to the CCD-camera.
